型号
Type

XRNM

XRNP

额定电压
Rated voltage

5.08KV

4.8KV

额定电流
Rated current

50/63/70/80/100A

3.15/5/6/6.3A

额定开断电流
Rated breaking current

50KA

额定频率
Rated frequency

50/60Hz

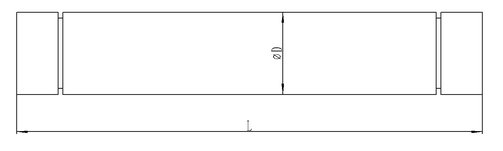

长度 L
Length

392mm

145mm

直径 ØD
Diameter

Ø76mm

Ø20mm
